- Size: 70cbm
- Place of Origin: Jinan, Shandong, China
- Brand Name: SINOTRUK
- Model Number: JYJ
- Weight: 12500.000 kg
- :
- :
- :
- :
Sinotruk semi trailer truck for sale!
All kinds of semi trailers: Low bed trailer, container trailer with good price & Strong body.

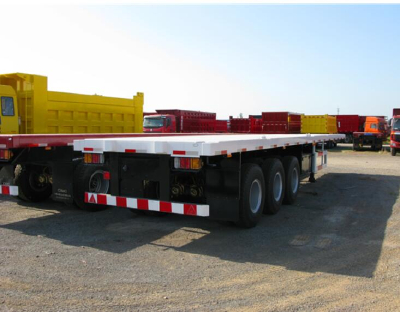

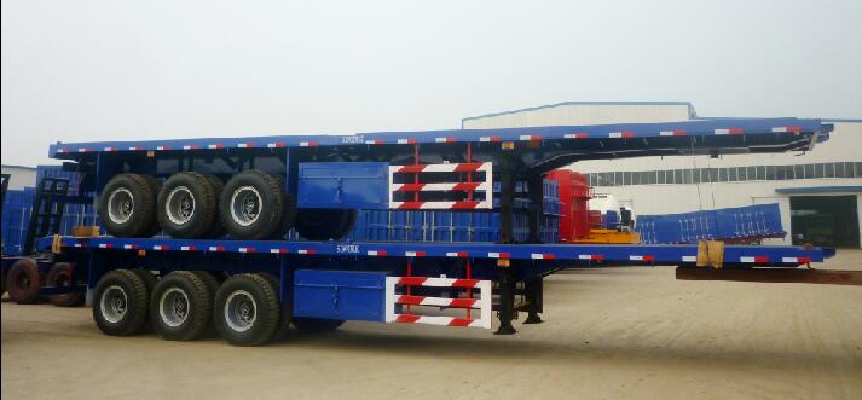

3 Axles Container Semi Trailer has a key role to play in the multimodal transport system. Various shipment options, including sea, air, road, and rail transportations, require the use of a flatbed trailer. The vehicle is also commonly seen in the ports and tunnels, on the bridges, and at the interchange stations.
Upon your request, we can add removable side rails and posts to the semi trailer to make loading and unload easier than before. In addition, the trailer can be uncoupled easily from one kind of transport facility and then directly connected to another.
Depending on the distance to customer destinations and the availability of welding service at customer site, customers can choose one of two ways their semi trailers are shipped: either break bulk shipping or containerized shipping.
Product Name | SINOTRUK Container Semi trailer truck |
Tare Weight | About 7.1T |
Dimension | 12450mm × 2490mm× 1575mm |
Loading Capacity (T) | ≤ 45 T |
Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
Rim | 9.00-22.5 or 9.75-22.5 |
Tire | 12.00R22.5/ 315 80R22.5 |
Suspensions | Mechanical suspension ( |
Spring Leaf | 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12(specially intended for overseas markets) |
King Pin | JOST brand 2.0 or 3.5inch (bolted or welded) |
Landing Gear (Support Leg) | JOST brand D200T or |
Main beam | Height: 500mm Upper plate: 14mm Middle plate: 8mm Bottom plate: 16mm Material: Q345B Steel |
Side Beam | 16mm or 18mm steel channel (material: Q235steel). |
Platform | 3mm-thick checkered plate |
Brake Chamber | WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber (TKL brand); 45L air tanks |
ABS | Optional |
Twist Locks | Four ,Eight or Twelve pieces (lifting type or twist Screw type)(specially intended for oversea market ) |
Valve | WABCO valve (specially intended for oversea market ) |
Light | LED light (specially intended for oversea market ) |
Voltage | 24V |
Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
Tool Box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Shipping Terms | Transported by the bulk carrier in an RORO or 40HQ container. |
Our Products
HOWO TRUCKS for sale: SEMI TRAILER, DUMP TRUCK, MIXER TRUCK,MINING TRUCK, TRACTOR TRUCK, TANKER TRUCK
HOWO FACTORY: DUMP TRUCK CHASSIS FACTORY,ENGINE FACTORY, AXLE FACTORY, UPPER BODY FACTORY
